1 | Maximum turning diameter of the tool holder | mm | 800 |
2 | Diameter of worktable | mm | 700 |
3 | Max. height of workpiece | mm | 800 |
4 | Max. weight of workpiece | kg | 700 |
5 | Table speed range | rpm/min | 5-200 |
level | stepless | ||
6 | Tool rest feed range | mm/min | 0.25-86 |
level | stepless | ||
7 | Maximum cutting force of tool holder | kg | 1200 |
8 | Total cutting force | kg | 2000 |
9 | Maximum torque | kg/m | 1250 |
10 | Tool rest travel horizontal direction | mm | 500 |
Tool head travel vertical direction | mm | 400 | |
11 | Beam travel | mm | 800 |
12 | Fast moving crossbeam speed | m/min | 1.8 |
13 | Beam lifting speed | m/min | 0.44 |
14 | Tool bar section size (width × height) | mm | 30×40 |
15 | Main motor power | kw | 15 |
16 | Feed motor power | Nm | 15 |
17 | Overall dimensions of the machine (L × W × H) | mm | 1700*2100*2700 |
NO. | NAME | MODEL | QTY. |
1 | Technical document | ||
2 | Instruction manual | 1 | |
3 | Packing list | 1 | |
4 | Anchor screw | M20X400 | 7 |
5 | Square table wrench | 16;QIS92–8 | 1 |
6 | Adjusting pad | 200MM | 7 |
The machine is mainly composed of Worktable, Worktable base, column, beam and vertical tool rack. The main parts of this machine are made of HT250 cast iron using resin sand technology and aging treatment (artificial aging and vibration aging) after roughing. Casting quality is reliable, without cracks, pores and shrinkage holes. After aging treatment, the casting has a stable structure, which ensures the stability of the machine during use. The product quality certificate contains a report on the analysis of the chemical composition, a report on the heat treatment and time curve of heat treatment temperature.
The machine tool is mainly composed of workbench, workbench base, column, cross beam and vertical tool holder. The base parts of the machine are HT250 cast iron, resin sand process, rough processing after aging treatment (artificial aging and vibration aging). Casting quality is reliable without cracks, pores, shrinkage and white tissue, castings after braising, aging treatment has a stable organization, to ensure the stability of the machine during use, product quality certificate provides the chemical composition analysis report of pouring hot metal, heat treatment report and heat treatment temperature and time curve.
The main drive drives the main motor through the frequency converter for stepless speed regulation. The gear inside the box is quenched and ground to ensure transmission accuracy and efficiency and reduce noise and vibration.

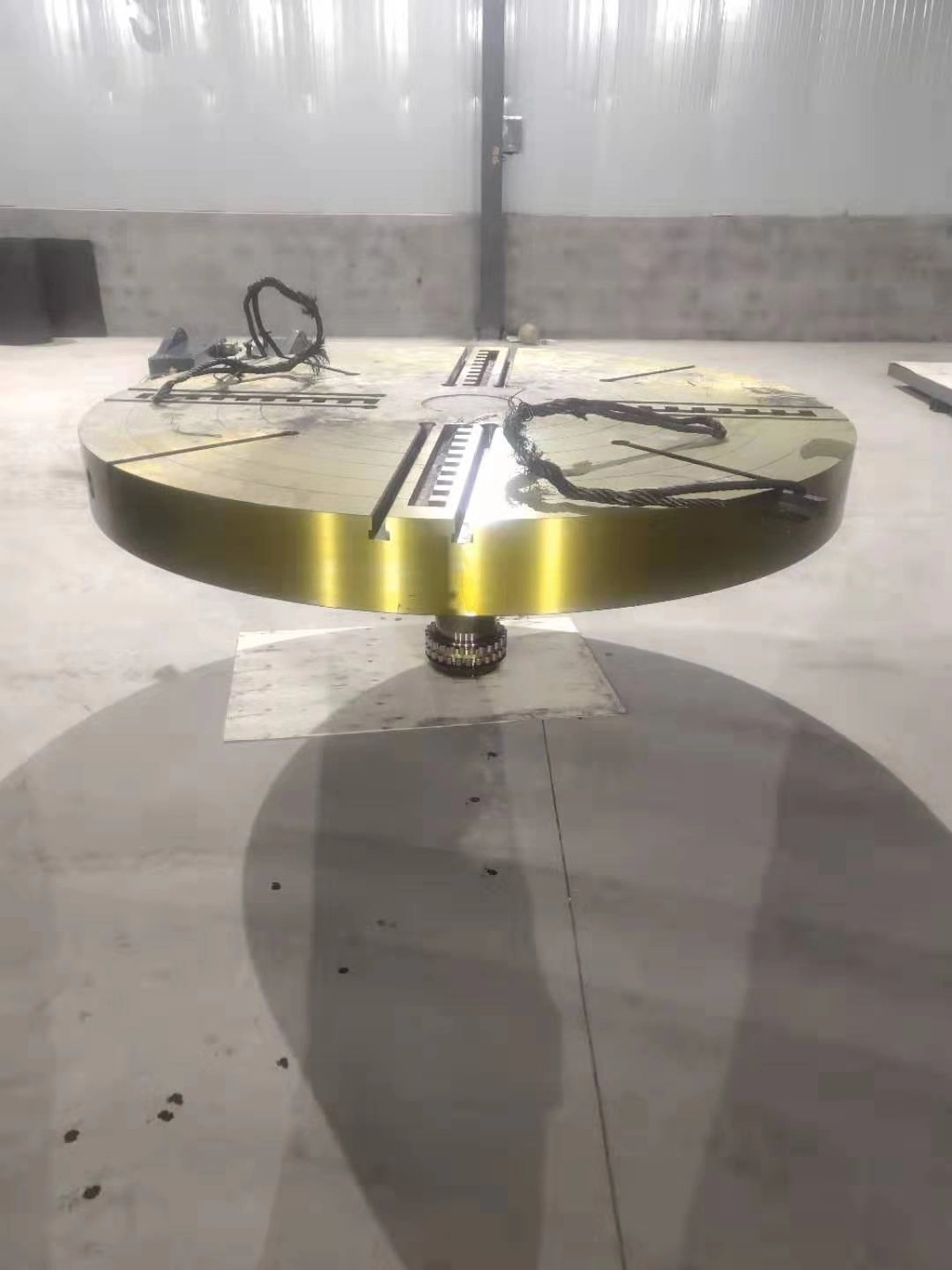

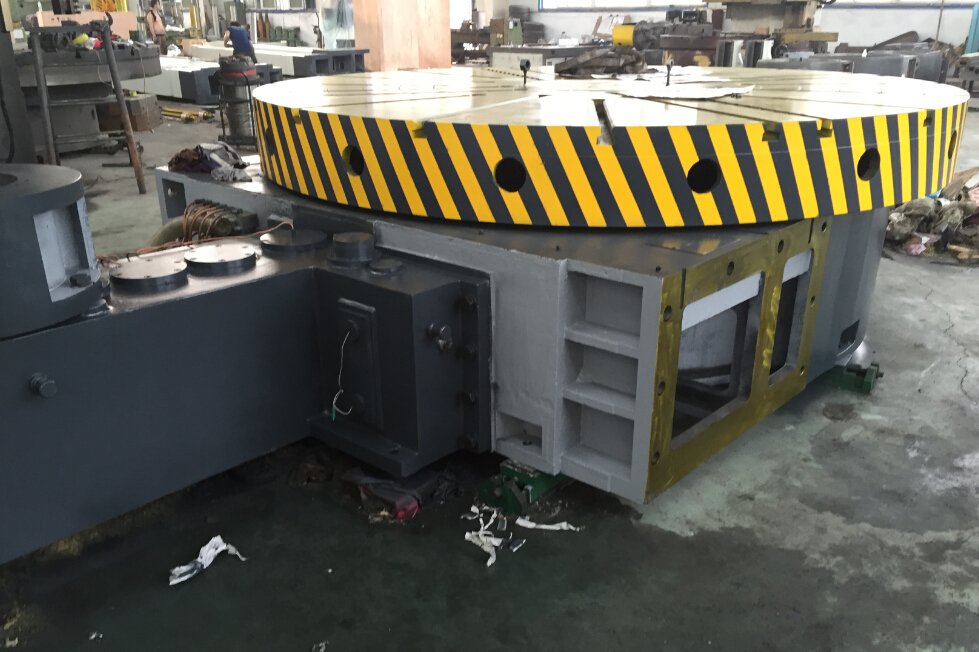

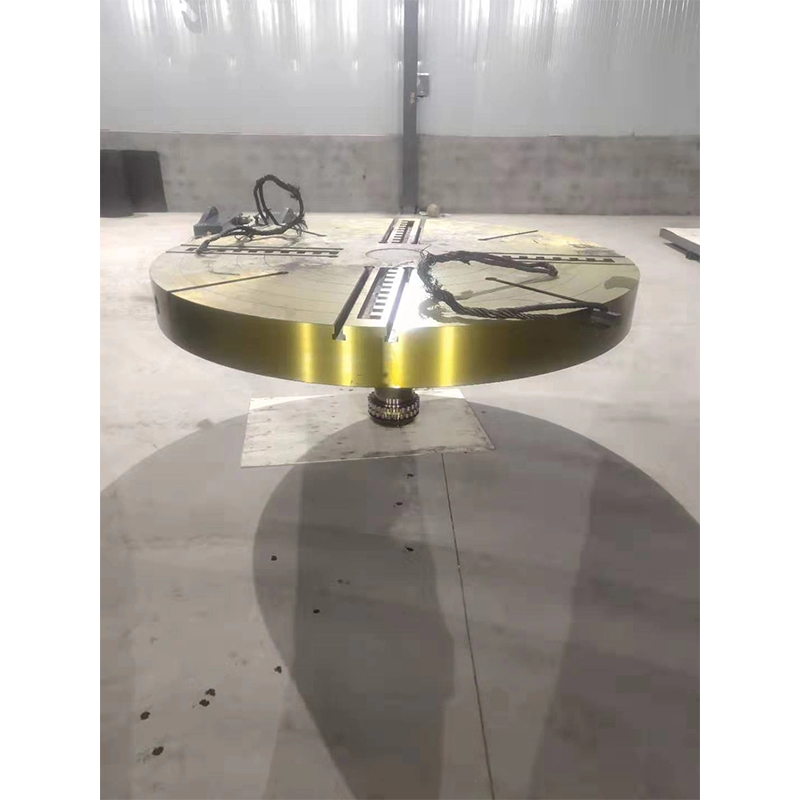

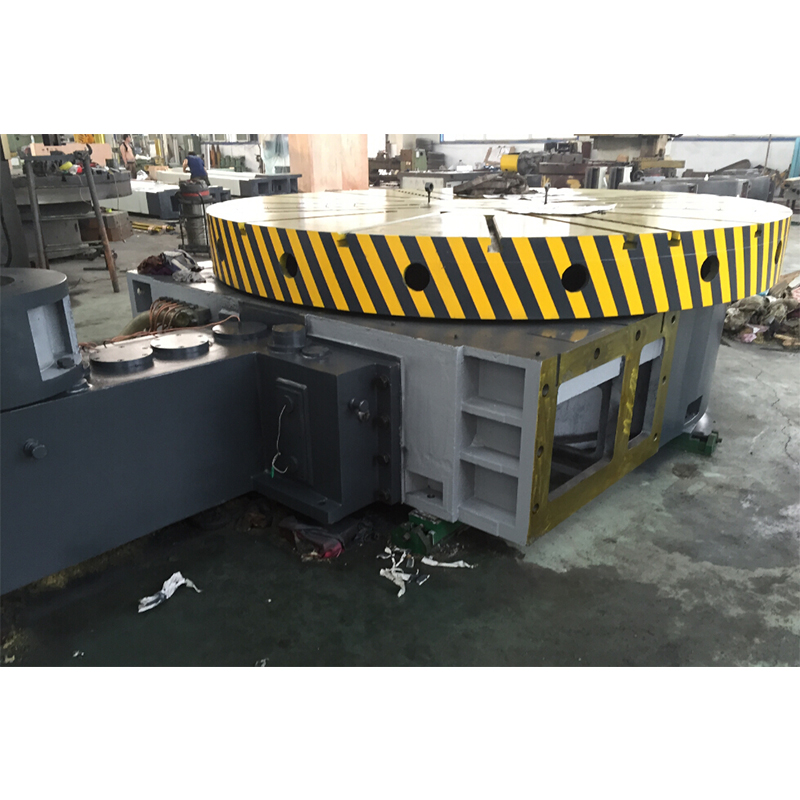

The work table is composed of the work table, the work table base, the main shaft parts and the transmission mechanism, the work table and the work table base are the whole casting processing. Taper bearing, bearing fixed, high rotation accuracy.
The beam is raised and lowered on the column. The beam is composed of a tool rest feed transmission mechanism, a beam clamping mechanism and a hydraulic device. An automatic lubricating oil pump is installed on the beam to lubricate the guide rail surface as required.

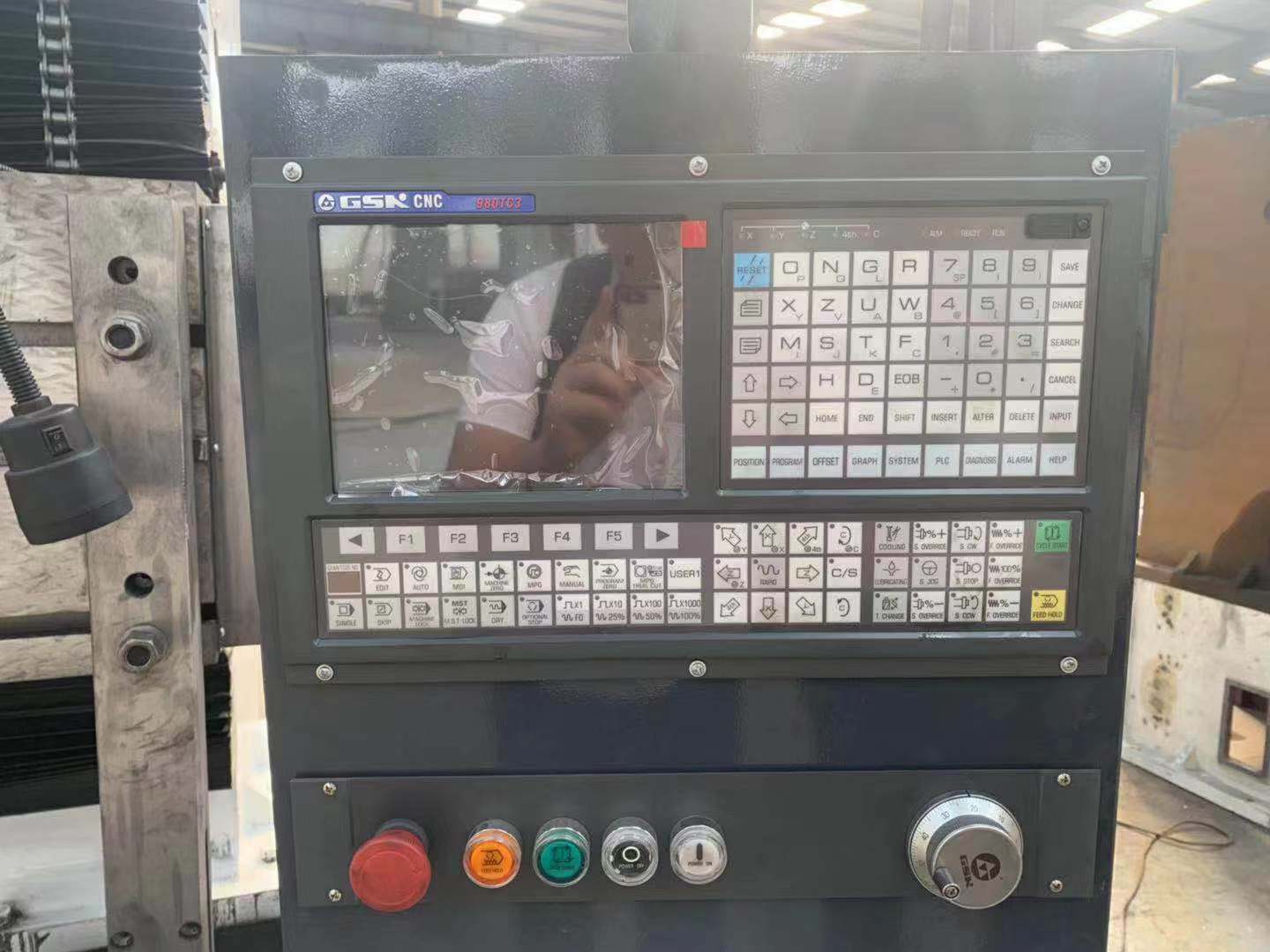

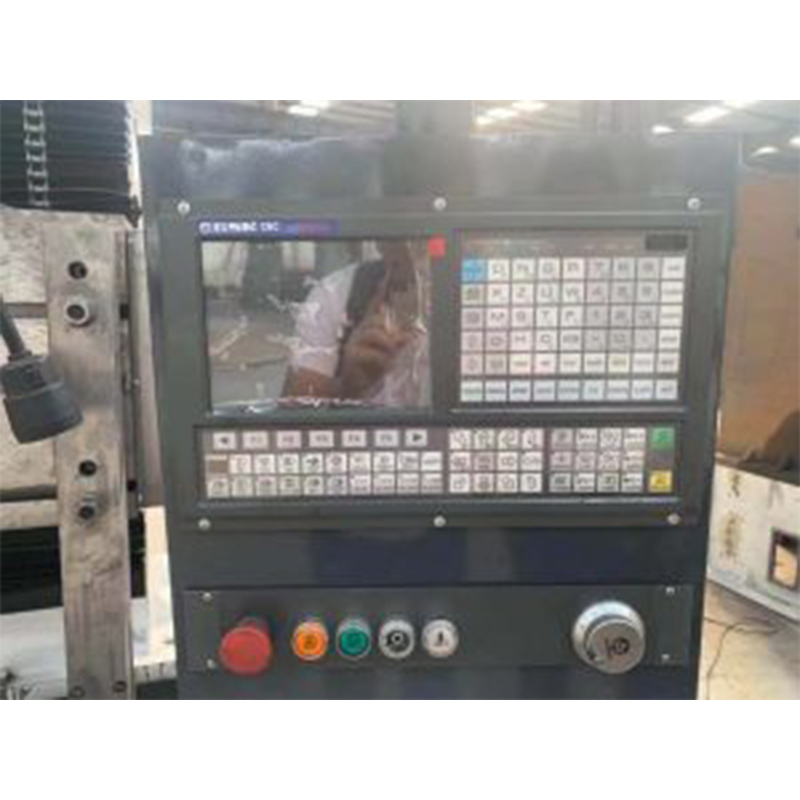

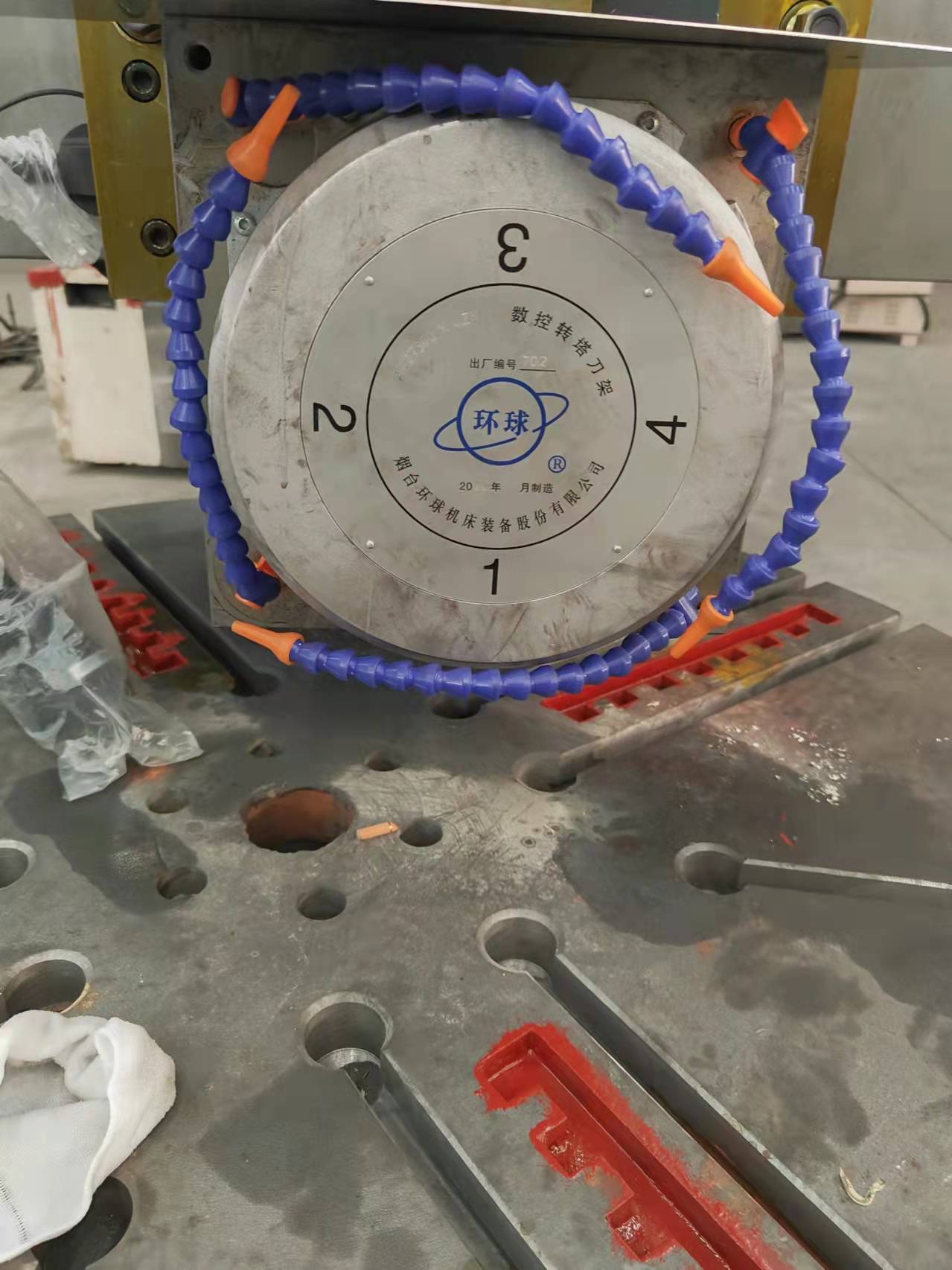

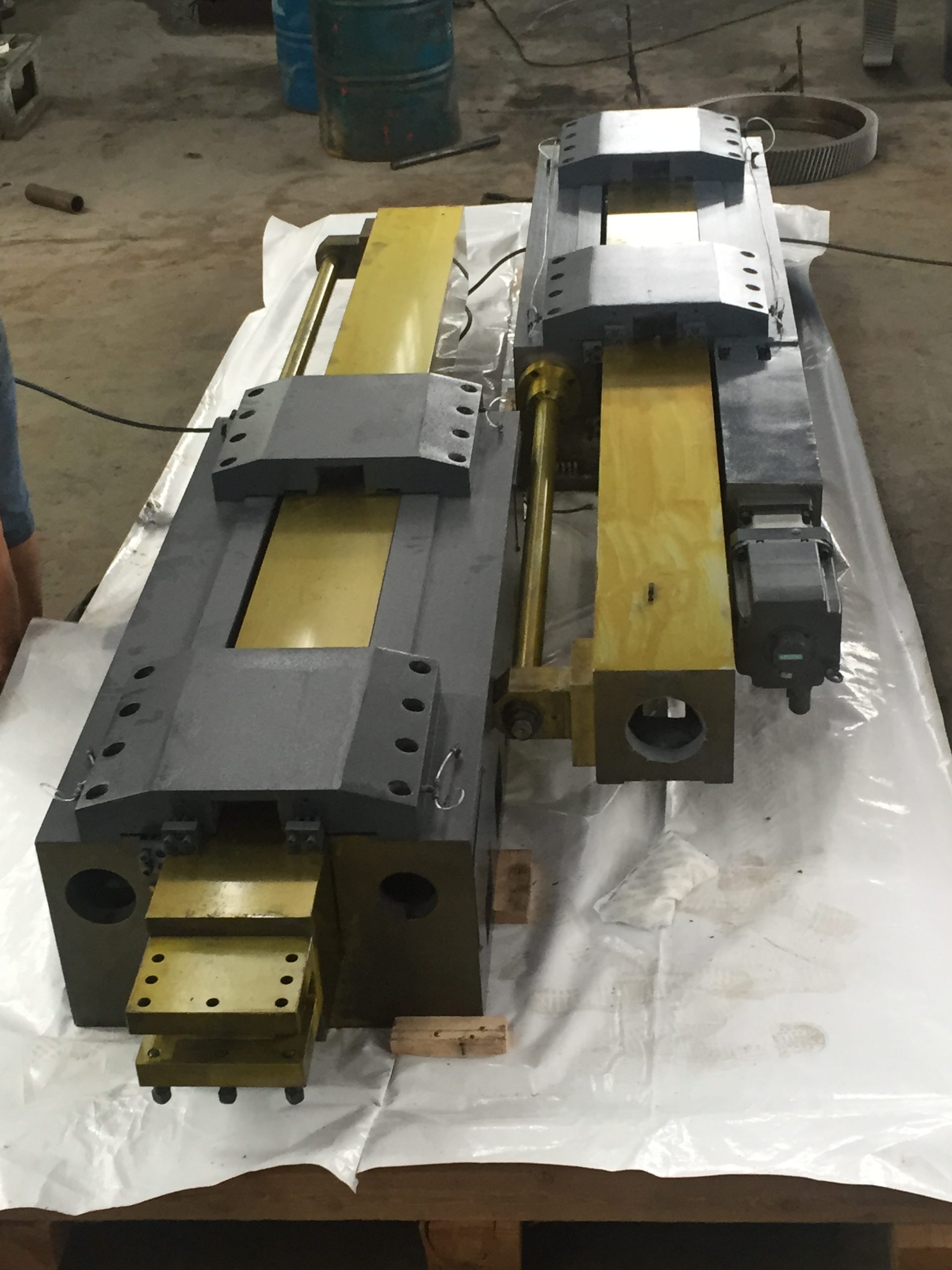

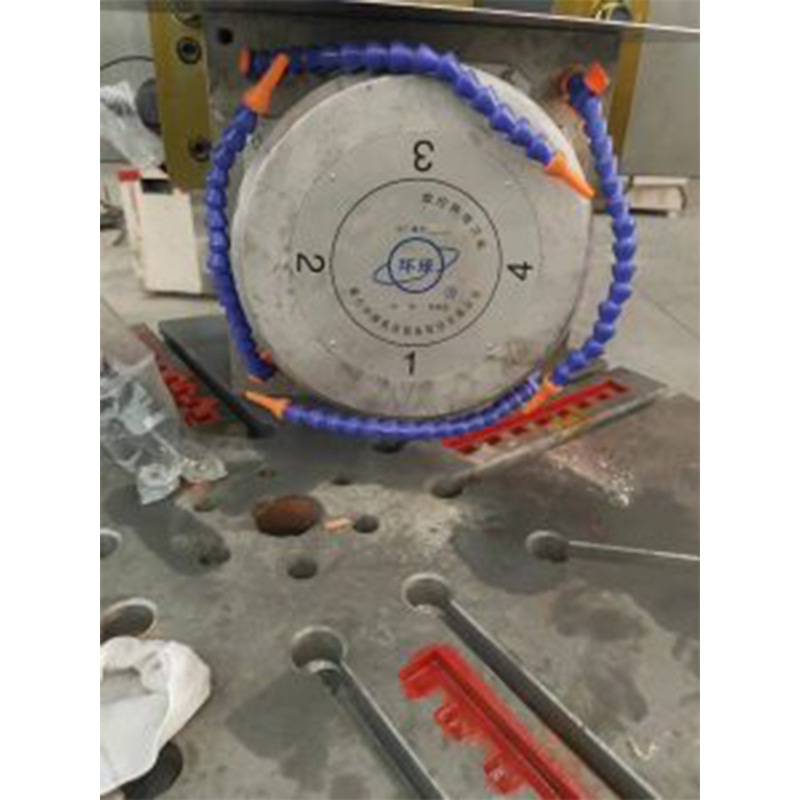

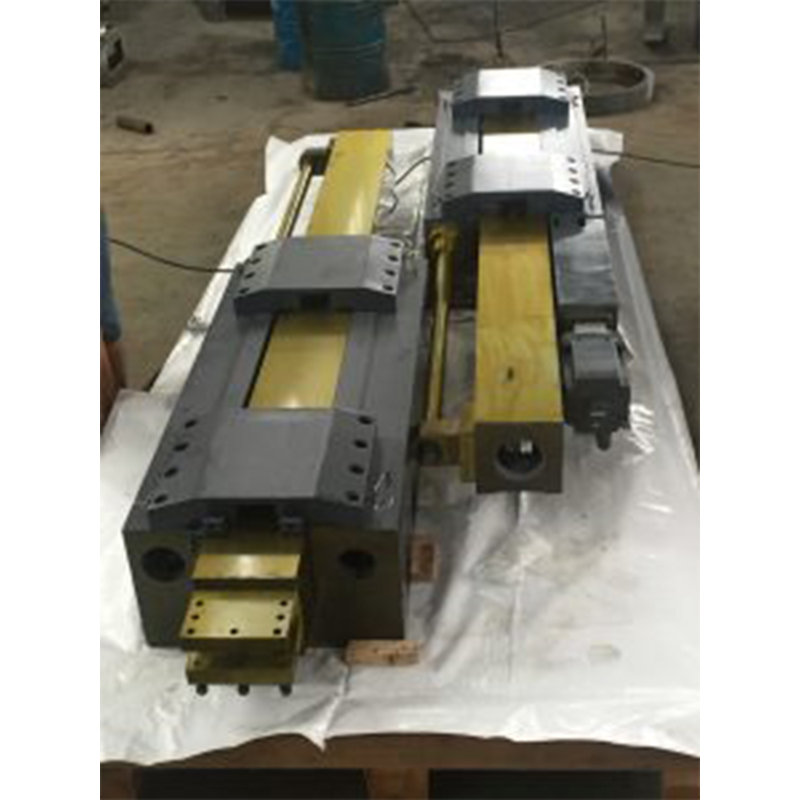

80x80mm square forged steel tool bar. The feed motor is controlled by CNC system, and the X/Z axis linkage is directly connected by servo motor to realize the rough and fine processing of plane and surface.
Hydraulic system includes: workbench lubrication system, tool rest lubrication system, guide rail lubrication system.
The guide rail of the machine tool is protected by steel plate, which makes the appearance more neat and beautiful.
